Census API

Census International Trade API with Python

The Census International Trade API provides access to detailed U.S. import and export data by country, commodity, and time period. This tutorial demonstrates how to retrieve export data and identify top U.S. trading partners.

Background

International Trade Statistics

The Census Bureau collects data on U.S. merchandise trade through customs declarations. The international trade dataset includes monthly statistics on exports and imports by partner country and product category.

Key Variables

The main variables we'll use are:

  • CTY_CODE - Country code identifying the trading partner. Codes 1000-8000 represent individual countries (excluding regional aggregates).

  • CTY_NAME - Country name for display purposes.

  • ALL_VAL_MO - Total value of exports for the month in U.S. dollars.

The full list of variables is available in the API documentation.

Example: Top U.S. Export Partners

Setup

Import the required packages and load your Census API key from a local config file. You can register for a free API key at the Census Bureau website.

In[1]:

import requests
import pandas as pd
import matplotlib.pyplot as plt
import config

key = config.census_key

Build the API Request

Construct the API URL to retrieve export values by country for a specific month. The endpoint intltrade/exports/hs provides Harmonized System trade data.

In[2]:

base = 'https://api.census.gov/data/timeseries/intltrade/exports/hs'
param = 'CTY_CODE,CTY_NAME,ALL_VAL_MO'
time = '2025-10'

url = f'{base}?get={param}&key={key}&time={time}'

Request Data from the API

Make the request and check that it was successful before parsing the JSON response.

In[3]:

r = requests.get(url)

if r.status_code == 200:
    data = r.json()
else:
    print(f'Error: {r.status_code}')

The response contains a list of lists, with the first row being column headers:

In[4]:

data[:3]

Out[4]:

[['CTY_CODE', 'CTY_NAME', 'ALL_VAL_MO', 'time'],
 ['0001', 'OPEC', '5765070418', '2025-10'],
 ['0003', 'PACIFIC RIM', '35817684498', '2025-10']]

Process the Data

Convert to a DataFrame, filter to individual countries (codes 1000-8000), and convert values to numeric billions.

In[5]:

df = pd.DataFrame(data[1:], columns=data[0])

# Filter to individual countries only (exclude aggregates)
df = df.loc[df['CTY_CODE'].str.isdigit()]
df['CTY_CODE'] = df['CTY_CODE'].astype(int)
df = df[(df['CTY_CODE'] >= 1000) & (df['CTY_CODE'] < 8000)]

# Convert to billions
df['ALL_VAL_MO'] = df['ALL_VAL_MO'].astype(float) / 1e9

Select Top Partners

Sort by export value and select the top 20 trading partners.

In[6]:

top20 = (df.sort_values('ALL_VAL_MO', ascending=True)
           .tail(20)
           .set_index('CTY_NAME')['ALL_VAL_MO'])

Create the Visualization

Plot a horizontal bar chart showing the top export destinations.

In[7]:

fig, ax = plt.subplots(figsize=(8, 8))
top20.plot(kind='barh', ax=ax, color='#4a7c59')
ax.set_xlabel('')
ax.set_ylabel('')
ax.axis('off')

# Add value labels
for i, (country, val) in enumerate(top20.items()):
    ax.text(-0.5, i, country, ha='right', va='center', fontsize=10)
    ax.text(val + 0.3, i, f'${val:.1f}B', ha='left', va='center', fontsize=10)

ax.set_title('Top 20 U.S. Export Destinations, October 2025\n', fontsize=12)
plt.tight_layout()
plt.show()

Out[7]:

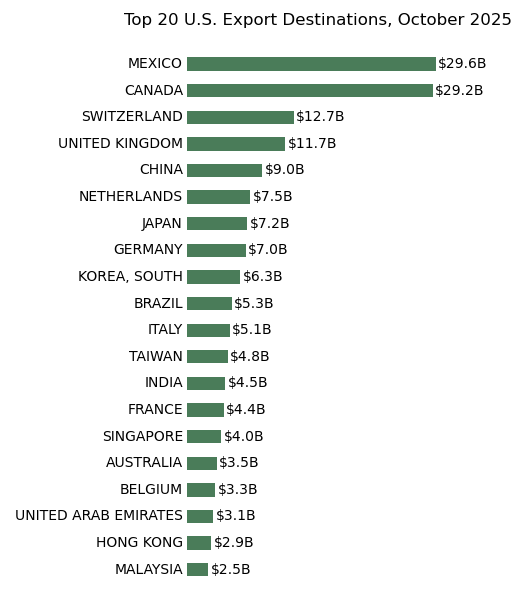

Top 20 U.S. Export Partners
